Fig. 079

Wall mounted control panel, front view, with aluminium fascia, with process diagram printed using under eloxal process

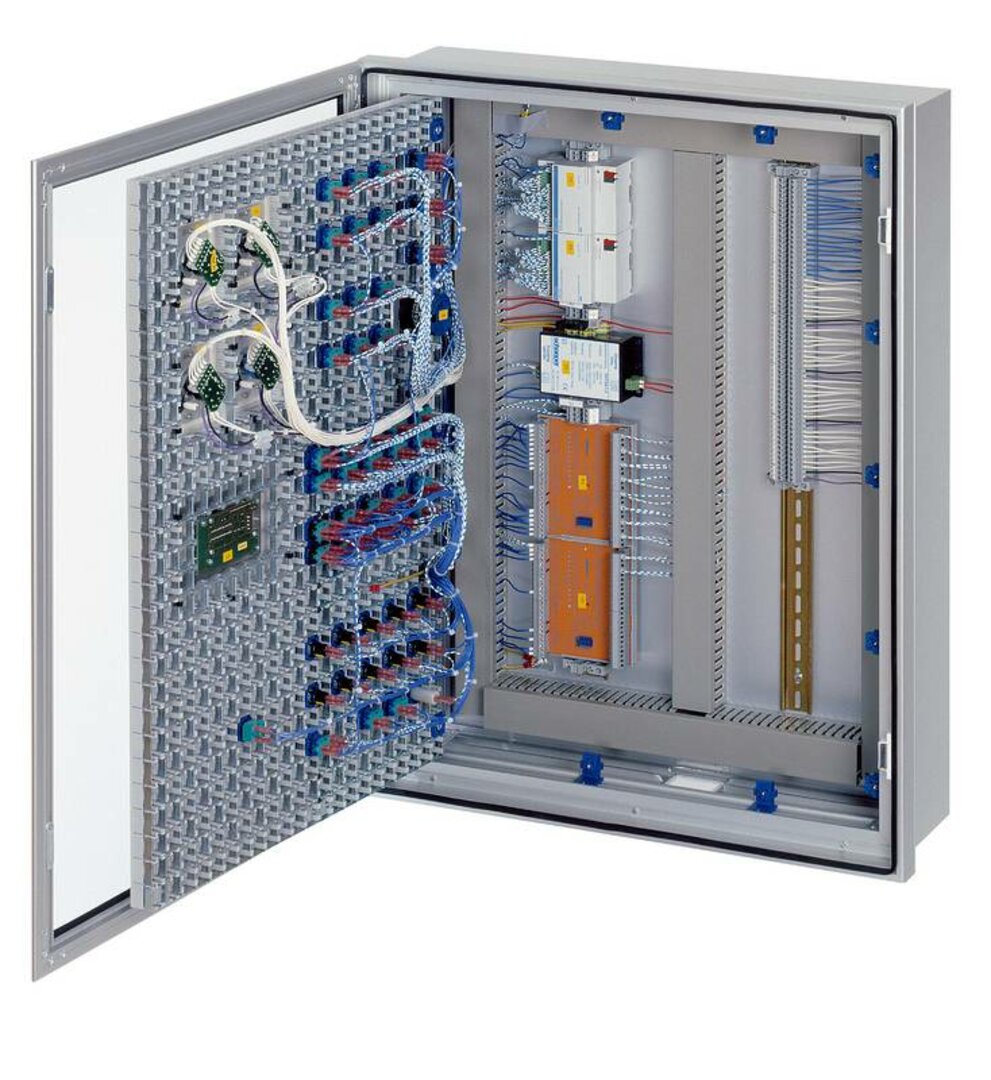

Fig. 080

Wall mounted control panel,

opened, machine panel,

with Profibus connector

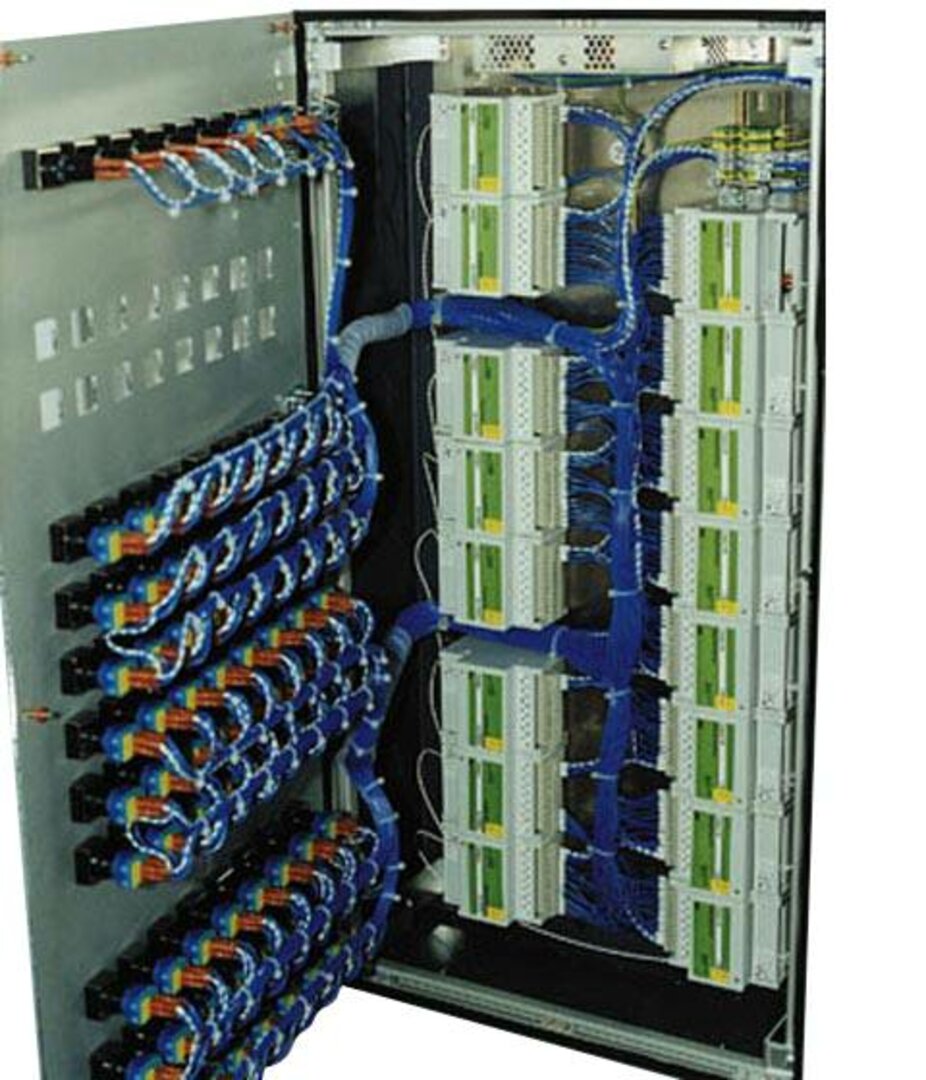

Fig. 035

Aluminium control panel, FM, opened,

pivoting front cover, screwed construction,

with standard EIB wiring

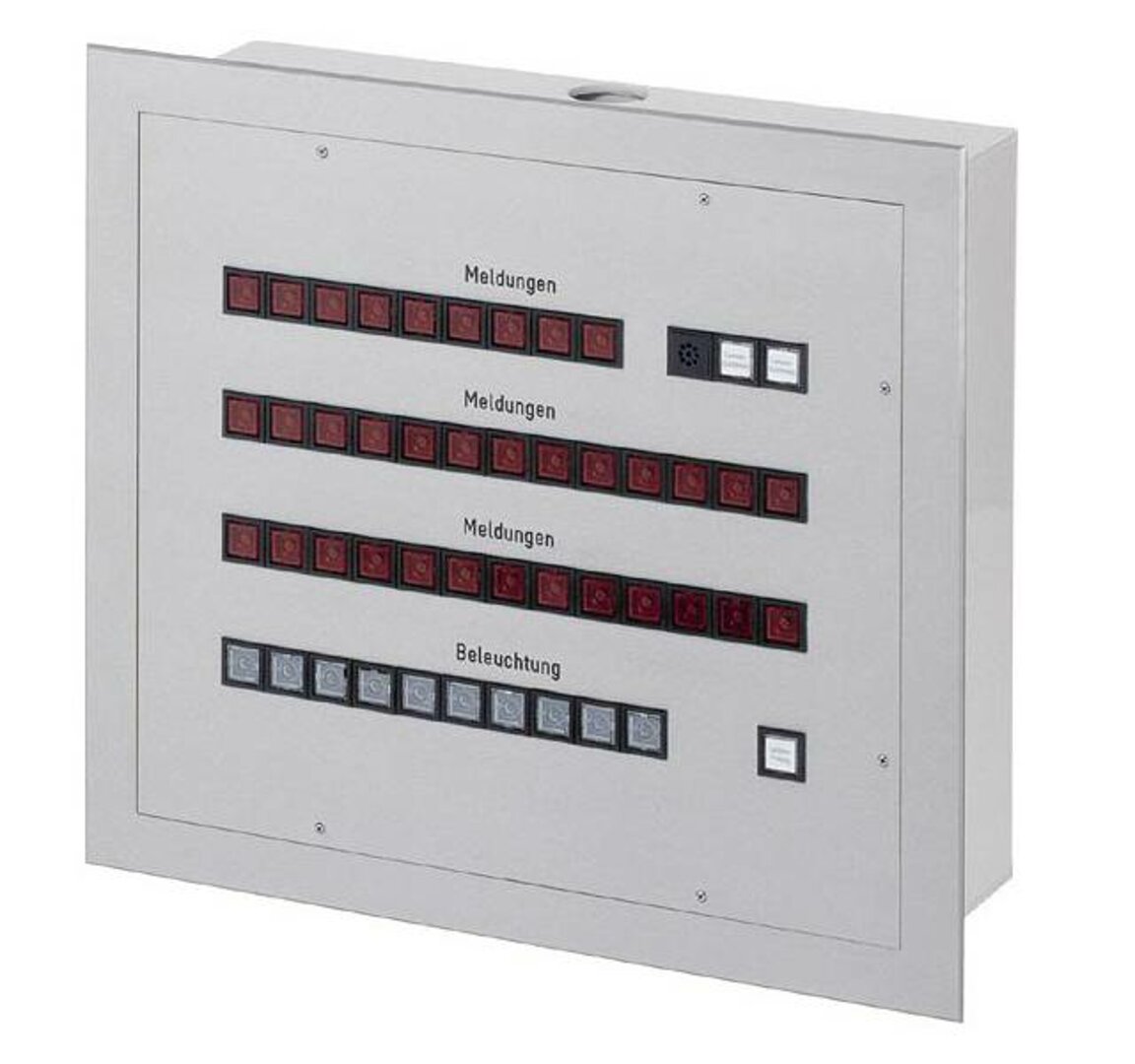

Fig. 045

Stainless steel control panel, front view,

for in wall installation

Figg. 045a

V2A stainless steel control panel, FM, opened,

with plastic housing, Schlegel instrumentation,

wiring with EIB

Fig. 032

Aluminium layout panel, FM,

with plastic flush mounting housing for tiled walls,

with standard EIB

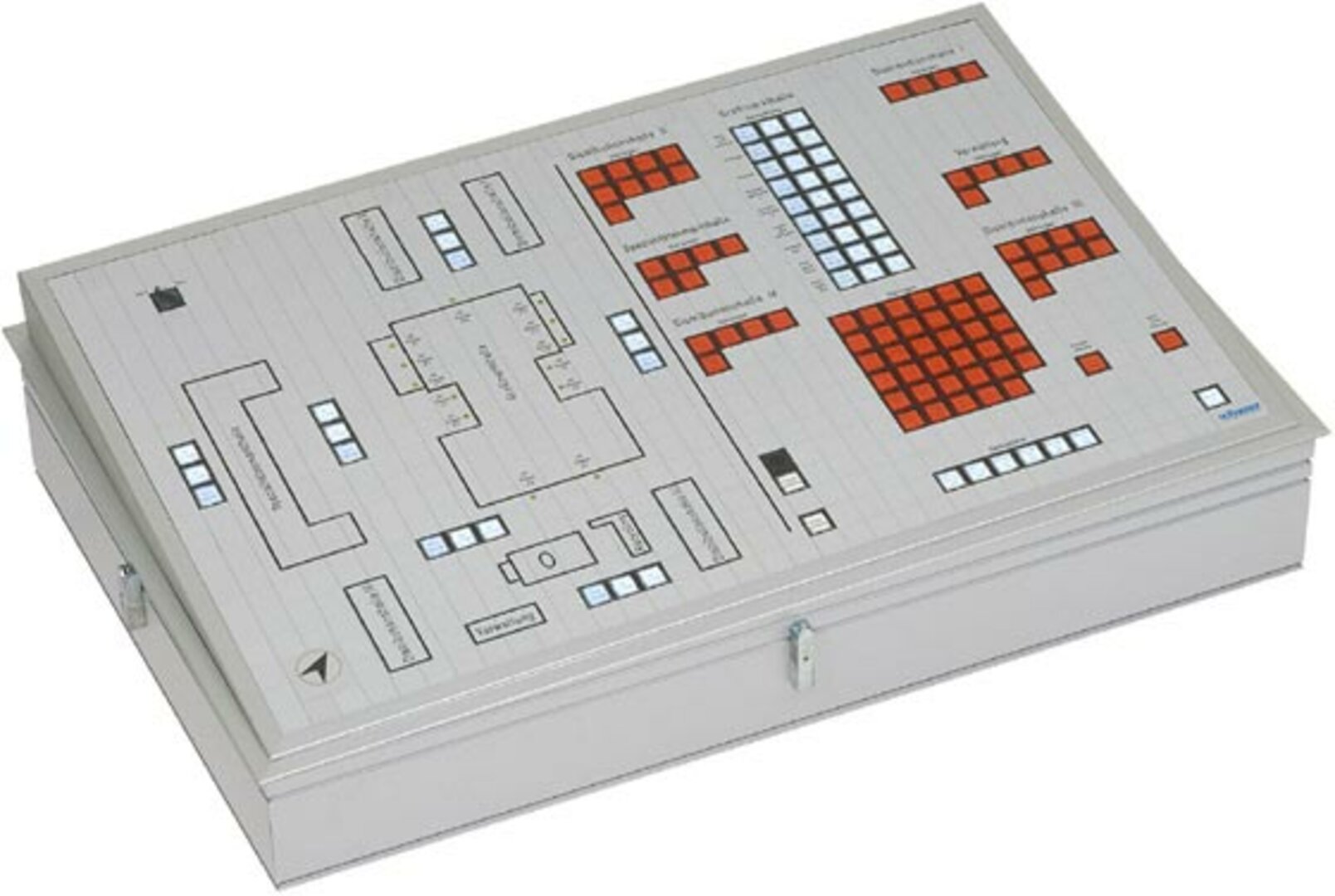

Fig. 023

Mosaic control console, front view, with engraved floor plan

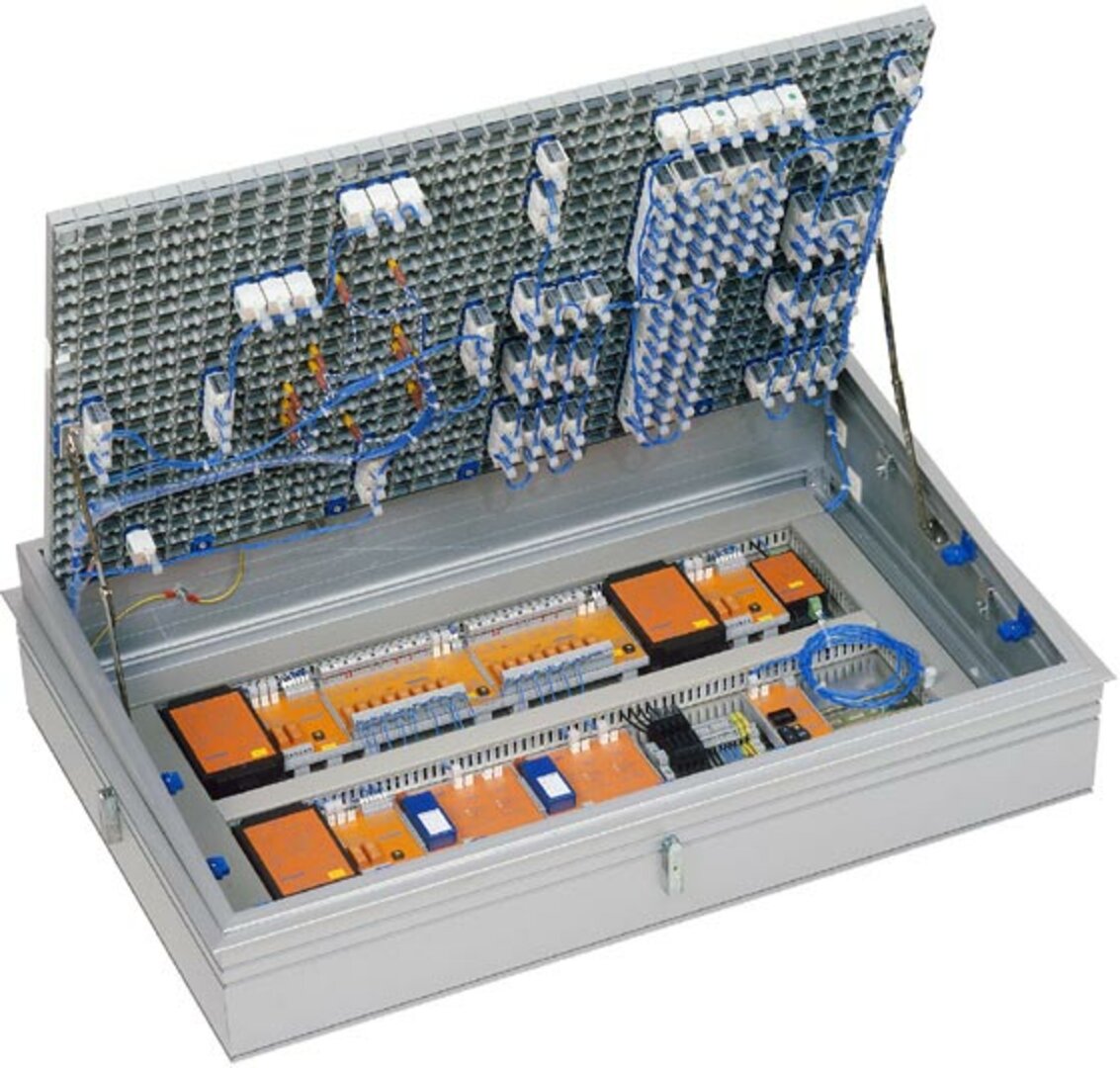

Fig. 023a

Mosaic control console, opened,

for recessed mounting, with EIB, for lighting + fault indication

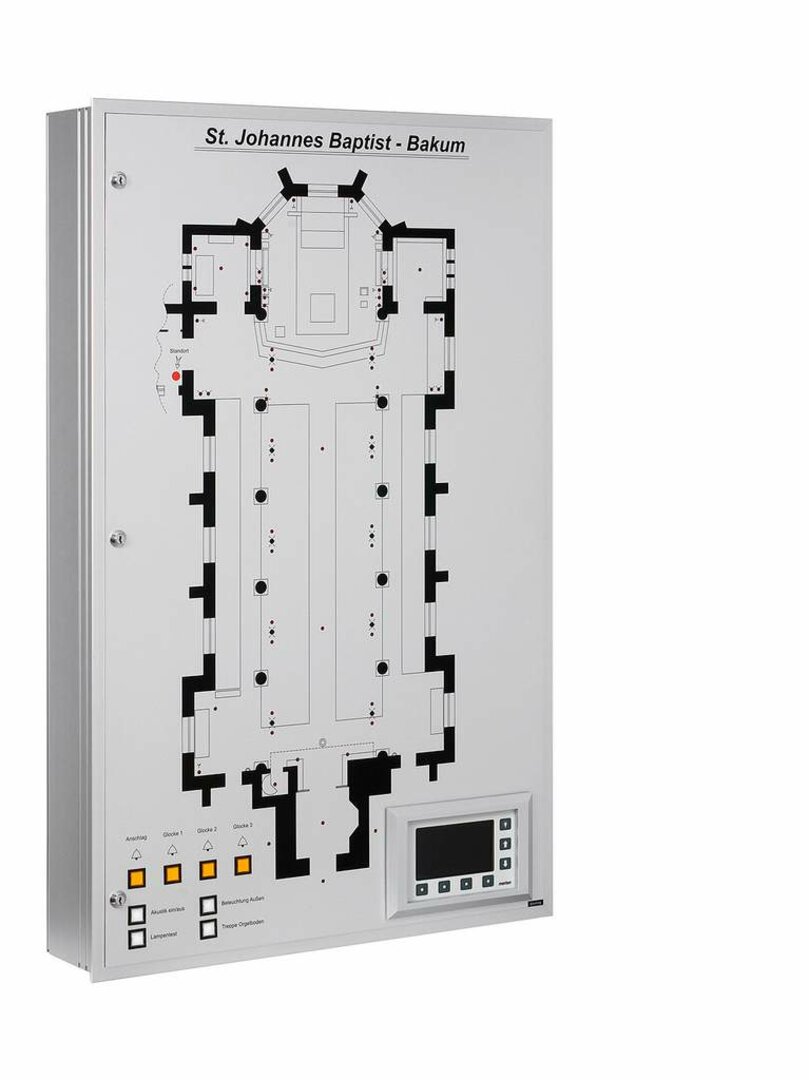

Fig. 092

Floor plan panel, under eloxal printing

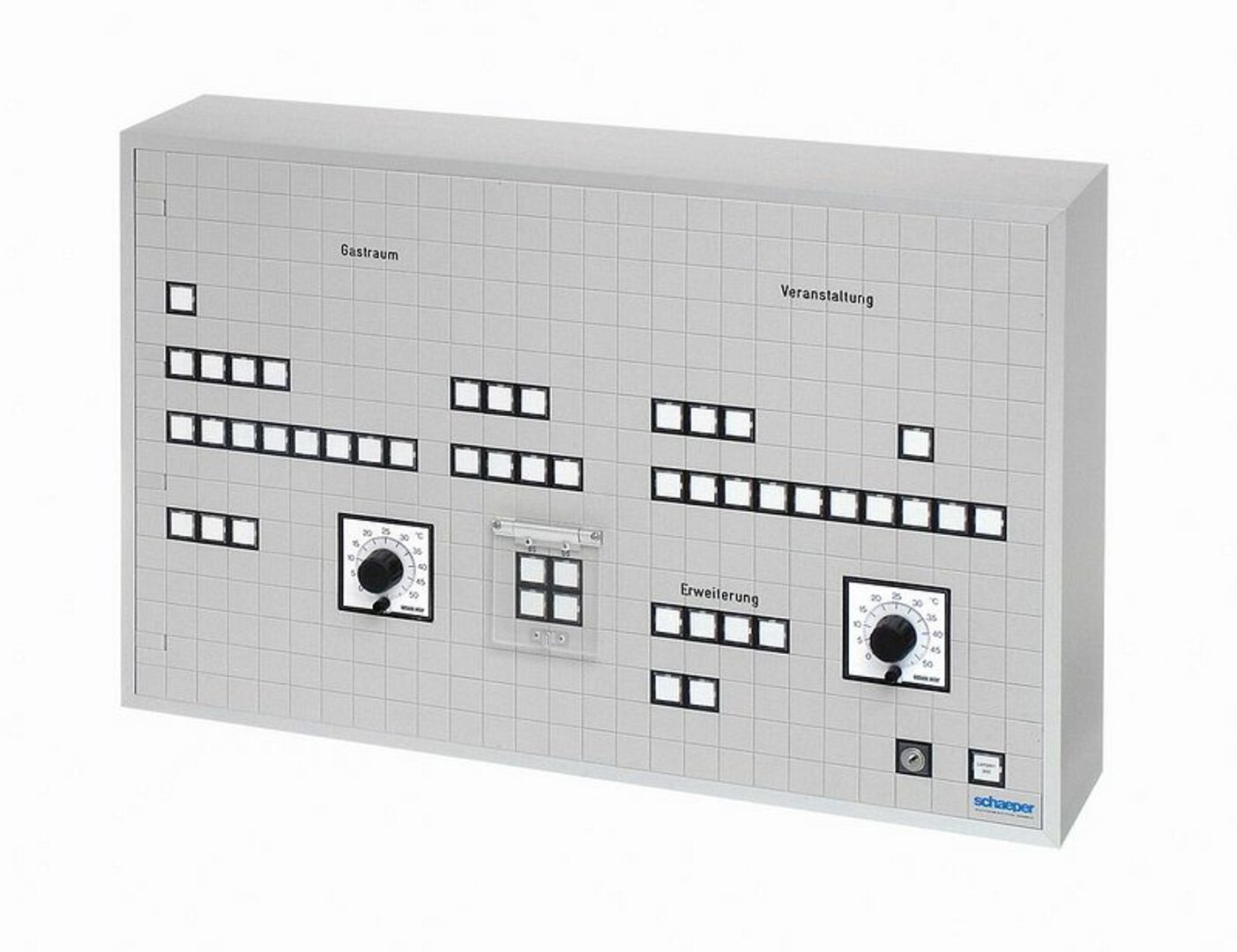

Fig. 105

Mosaic surface mount control panel, front,

in aluminium surface mount housing,

with foreign fittings, with button guard

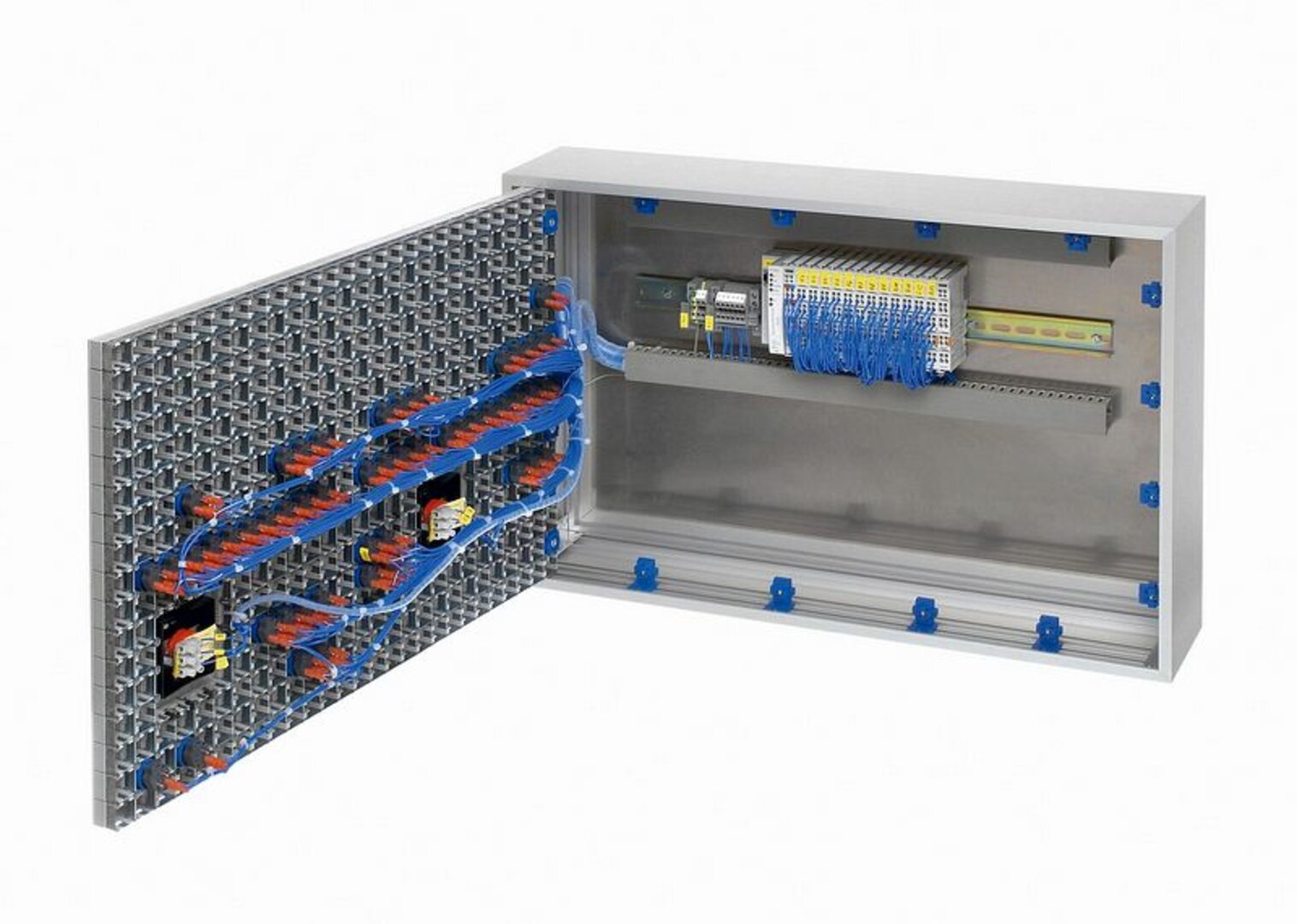

Fig. 106

MMosaic surface mount housing, interior,

with WAGO Ethernet bus terminals,

with Schlegel instrumentation
